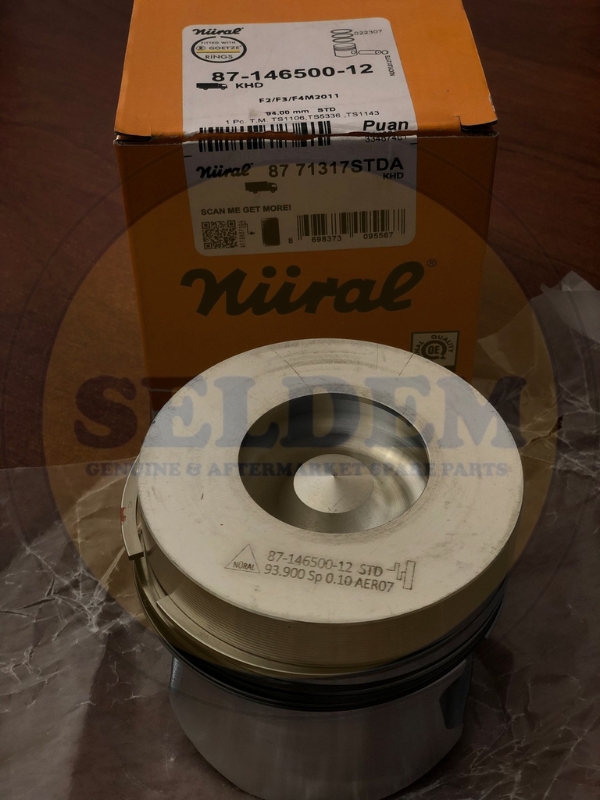

Deutz Piston with rings and pin - 8771317STDA Nural - 04281244, 04281245, 04281445

Piston Ölçüleri(Piston Dimensions)

A : 51.700
B- : 19.000
BØ : 46.000
BX : 2.000
BY : 0.800
D : 81.650
E : 16.000

Pim : 26 x 65

Piston Özellikleri(Piston Features)

Gözarası Düz
(Flat Eye Gap)

Piston Parça No
(Piston Part No)

87-146500-12
87-71317-STDA

87-146507-12
87-71317-050A

Segman Seti(Ring Set)

06-146500-20-STD
06-146507-20-0,50 mm

2.000		CK	KV1
2.000			F14
3.000		CR	STD

Goetze® LKZ-Ring®

Silindir Gömleği
(Liner)

14-021750-00-D
B : 97.000
L : 175.000
D : 98.500
C : 5.000

Silindir Kit(Assembly Set)

Piston-Blok Montaj Yüksekliği(Piston – Block Assembly Height)

04281445, 04281244, 04281245, 1019700, 40773600
